Chandrayaan-3

The main Chandrayaan-3 spacecraft consists of three modules—the lander module, a propulsion module, and a rover module. The propulsion module will carry the spacecraft from an injection orbit around Earth to a 100-kilometer lunar orbit.

The Indian Space Research Organization's Chandrayaan 3 mission aims to demonstrate end-to-end landing and roving capabilities by placing a lander and rover in the highlands near the South Pole of the Moon in August 2023. It will likewise make various logical estimations on a superficial level and from a circle. It consists of a propulsion module and a lander/rover. The lander/meanderer will be like the Vikram wanderer on Chandrayaan 2, with upgrades to assist with guaranteeing a protected landing. The propulsion module, which will continue to orbit the Moon and serve as a communications relay satellite, will propel it into lunar orbit.

Spacecraft and Subsystems The propulsion module is a modified I-3K structure that looks like a box. It has a large solar panel on one side and a large cylinder on top called the Intermodule Adapter Cone that holds the lander in place. The primary engine spout is on the base. It has a mass of 2145.01 kg, of which 1696.39 kg is charged for the MMH + MON3 bi-fuel impetus framework. It can produce a power of 738 W. Correspondences are by means of S-Band and disposition sensors incorporate a star sensor, Sun sensor, and Inertial Reference unit and Accelerometer Bundle (IRAP).

The lander has four landing legs and four landing thrusters and is generally box-shaped (200 x 200 x 116.6 cm). It has a mass of 1749.86 kg, including 26 kg for the meanderer, and can produce 738 W utilizing side-mounted sun-powered chargers. An accelerometer, altimeters (Ka-band and laser), Doppler velocimeter, star sensors, inclinometer, touchdown sensor, and a suite of cameras for hazard avoidance and positional knowledge are among the sensors on board the lander to guarantee a safe landing. Response wheels are utilized for demeanor control, and drive is given by an MMH and MON3 bipropellant framework with four 800 N throttleable motors and eight 58 N throttleable motors. Communications are carried out using an X-band antenna. The lander conveys the meanderer in a compartment with a slope for organization onto the surface.

The meanderer is a rectangular frame, 91.7 x 75.0 x 39.7 cm in size, mounted on a six-wheel rocker-bogie wheel drive get-together. It has navigation cameras and a 50 W solar panel, and it uses Rx/Tx antennas to talk directly to the lander.

A passive laser retroreflector array provided by NASA for lunar ranging studies, Chandra's Surface Thermophysical Experiment (ChaSTE), the Instrument for Lunar Seismic Activity (ILSA), and the Radio Anatomy of Moon Bound Hypersensitive Ionosphere and Atmosphere (RAMBHA) will all be on board the lander to study the gas and plasma environment. An Alpha Particle X-ray Spectrometer (APXS) and a Laser Induced Breakdown Spectroscope (LIBS) are the two instruments that will be carried by the rover for the purpose of examining the local surface elemental composition. The Impetus Module/Orbiter will convey one investigation called the Spectropolarimetry of Livable Planet Earth (SHAPE) to concentrate on Earth from the lunar circle.

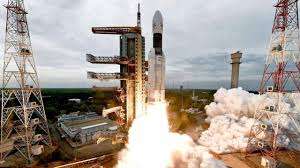

Profile of the Mission is currently scheduled to launch on a GSLV Mark 3 (LVM 3) heavy-lift launch vehicle from the Satish Dhawan Space Center in Sriharikota, India, on July 14, 2023, at 9:05 UT (2:35 p.m. India standard time), though it could launch as late as July 19. It will put Chandrayaan 3 into an around 170 x 36,500 km elliptic stopping circle. The lander and rover will separate once the propulsion module has placed them in a 100-kilometer circular polar lunar orbit. The lander and the rover will then collide in the south-polar region of the Moon, close to 69.37 S and 32.35 E, according to the scheduled launch time. Landing is anticipated toward the end of August. Vertical and horizontal touchdown speeds of less than 2 m/s are anticipated. The drive module/correspondences hand-off satellite will stay in a lunar circle to empower correspondences with Earth. Chandrayaan 2 will likewise be utilized as a reinforcement transfer. The lander and rover are intended to operate for one lunar daylight period, which is equivalent to approximately 14 Earth days.
